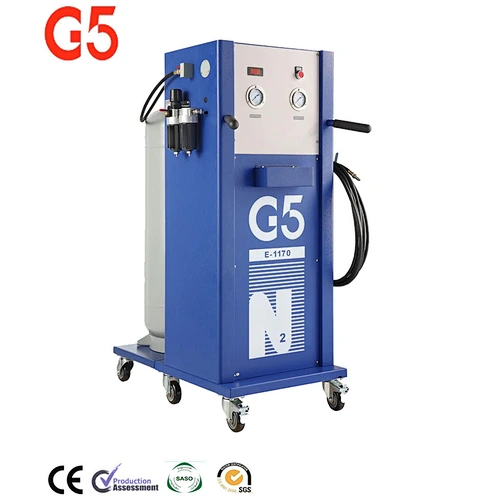

N2 Nitrogen Generator Advertising Inflatable Truck Tires Inflation Station Car Tyres Filling Bus Tyer Nitrogen Tire Inflator Set
E-1170
1 set
ZHUHAI
Quantity
- Voltage:100Vac/240Vac
- Max Pressure:151-250Psi
- Size:1310*730*620mm
- Place of Origin:Guangdong, China
- Brand Name:G5
- Model Number:E-1170
- Warranty:12 Months
- Function:Tire Pressure Monitor, Quickly Inflate
- Product name:tyre nitrogen inflator
- G5 Standard Color:Blue
- Type:Electric Inflator
- Material:Metal
- Usage:Tire Inflation System
- Nitrogen Purity:above 97%
- Nitrogen output:228L/min
- Maximum nitrogen pressure in Tank:174PSI
- Packing:1450*730*670mm
Product Description

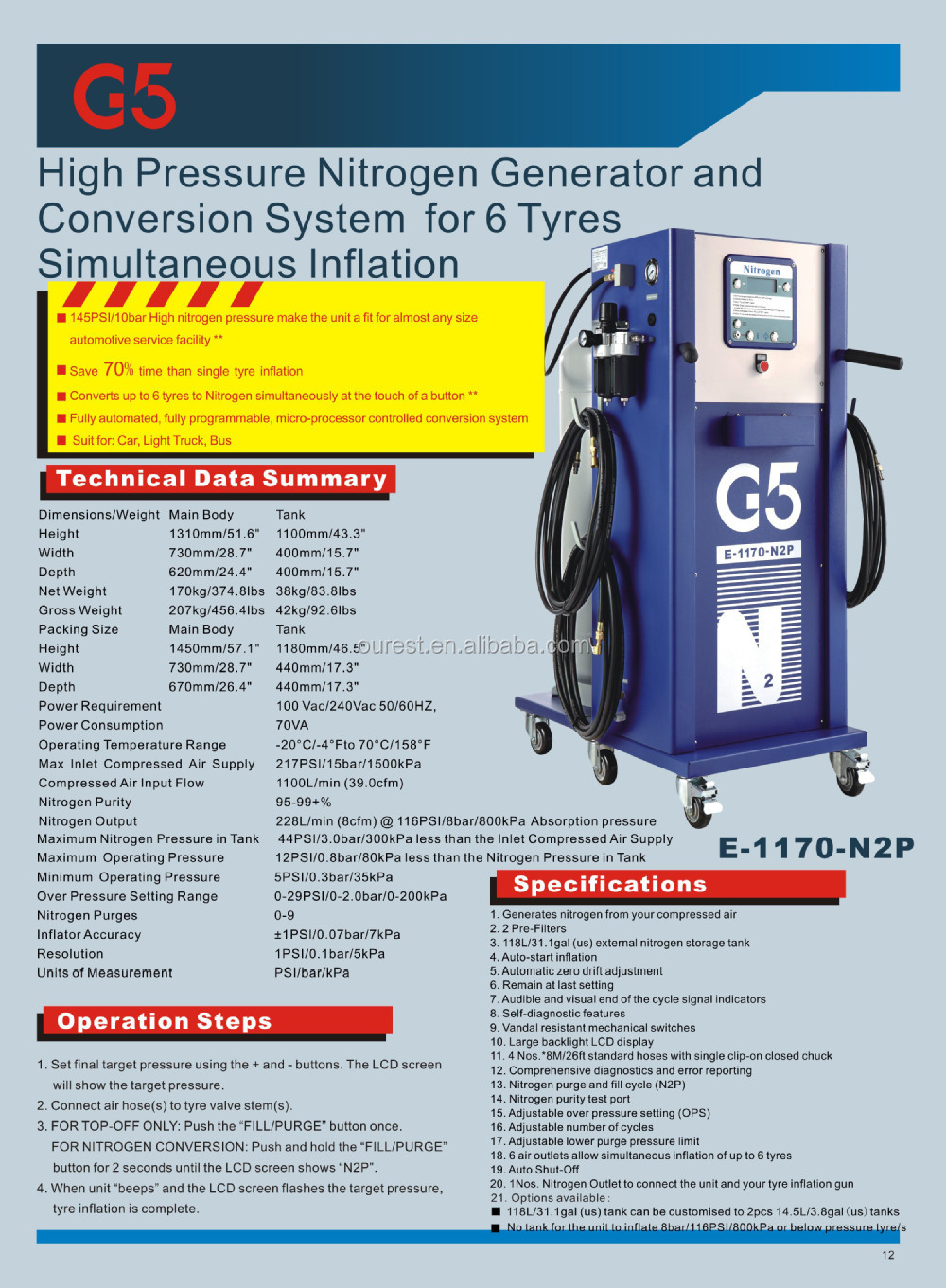

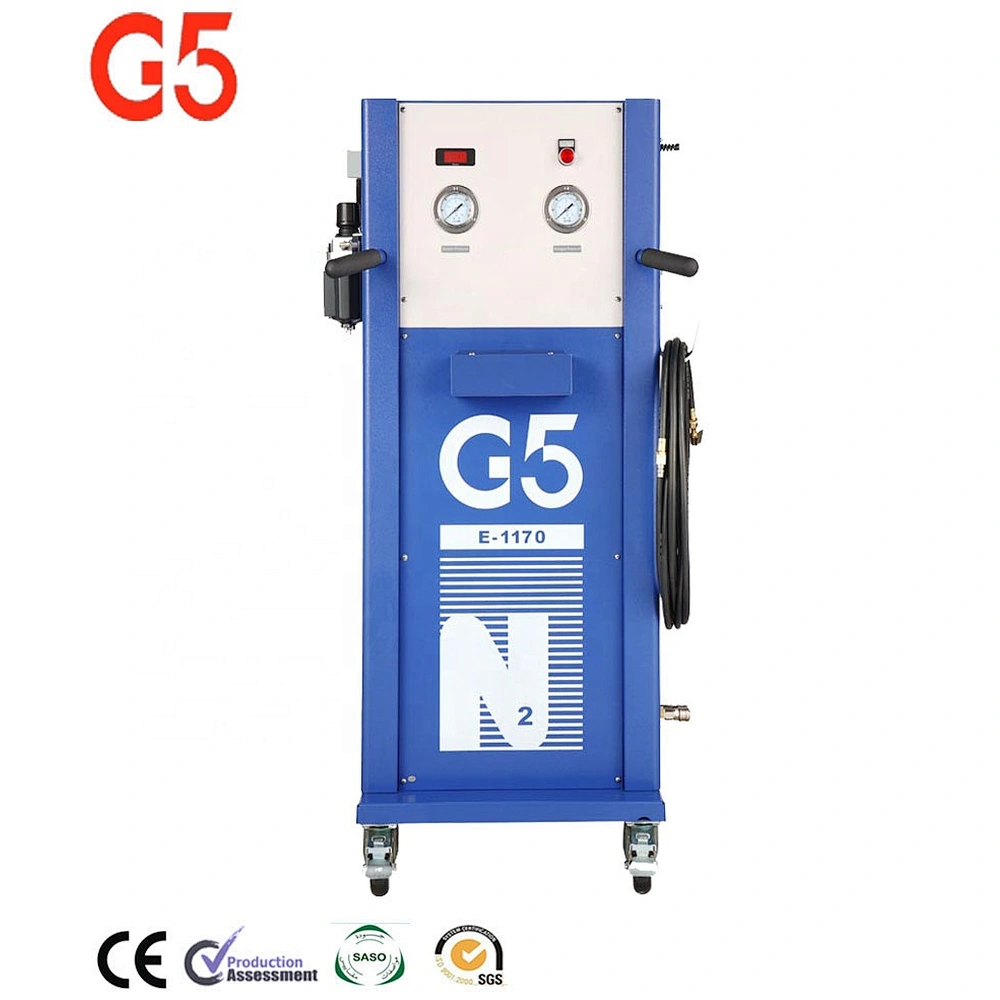

| E-1170 High Pressure Nitrogen Generator | |||
| Main Feature | |||
| 1. Suit for: Car, Light Truck, Bus | |||
| 2. 145PSI/10bar High nitrogen pressure make the unit a fit for almost any size automotive service facility | |||
| Technical Data | Specification | ||
| Application:Car, Light Truck, Bus | Pre-Filter/s: 2 | ||
| Built-in Automatic Tyre Inflator:No | Internal Nitrogen Storage Tank: No | ||
| Power Requirement: 100Vac/240Vac 50/60HZ | External Nitrogen Storage Tank: 118L | ||
| Power Consumption: 45VA | Inflator Display: No | ||
| Operating Temperature Range: -20°C/-4°F to 70°C/158°F | Nitrogen Outlet/s: 1 | ||
| Maximum Compressed Air Input: 217PSI/15bar/1500kPa | 8M/26ft Hose with Closed Chuck: No | ||
| Compressed Air Input Flow: 1100L/min (39.0cfm) | 10M/32.8ft Hose with Open Chuck: No | ||

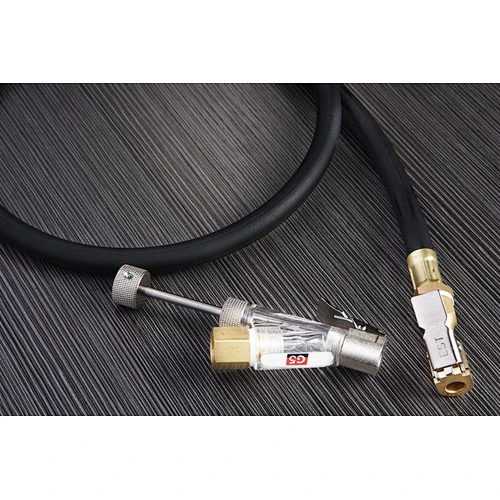

| Nitrogen Purity: 95-99+% | 10M/32.8ft Hose with Fitting: 1 | ||
| Nitrogen Output: 228L/min (8cfm) | Nitrogen Purity Test Port: Yes | ||
| Maximum Nitrogen Pressure in Tank: 174PSI/12bar/1200kPa | Adjustable Lower Purge Pressure Limit: No | ||
| Maximum Inflator Set Pressure: No | Auto-Start Inflation: No | ||
| Minimum Inflator Set Pressure: No | Automatic Zero Drift Adjustment: No | ||
| Over Pressure Setting (OPS): No | Vandal Resistant Mechanical Switches: No | ||
| Nitrogen Purge and Fill Cycle (N2P): No | Net Weight: 167kg/368.2lbs | ||
| Inflator Accuracy: No | Gross Weight: 200kg/441.2lbs | ||
| Resolution: No | Dimensions (Height*Width*Depth): 1310*730*620(mm) 51.6"*28.7"*24.4" | ||
| Units of Measurement: No | Packing Size (Height*Width*Depth): 1450*730*670(mm) 57.1"*28.7"*26.4" | ||
Packaging & Shipping
Company Information

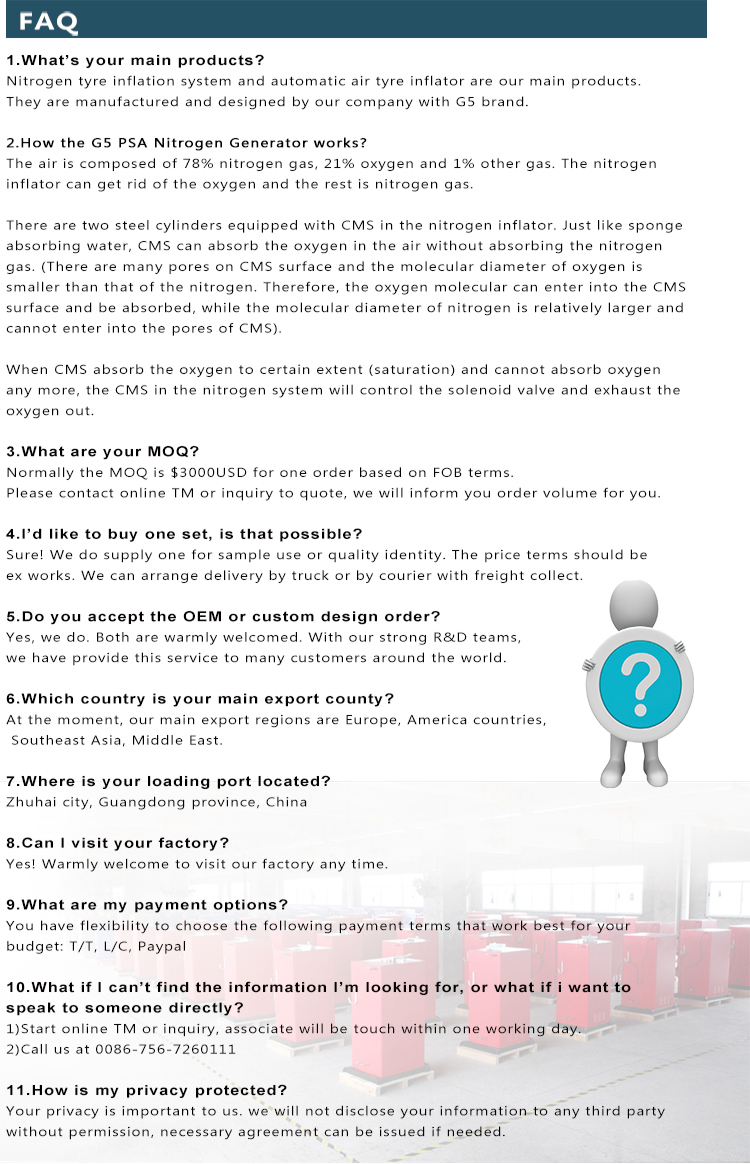

FAQ
