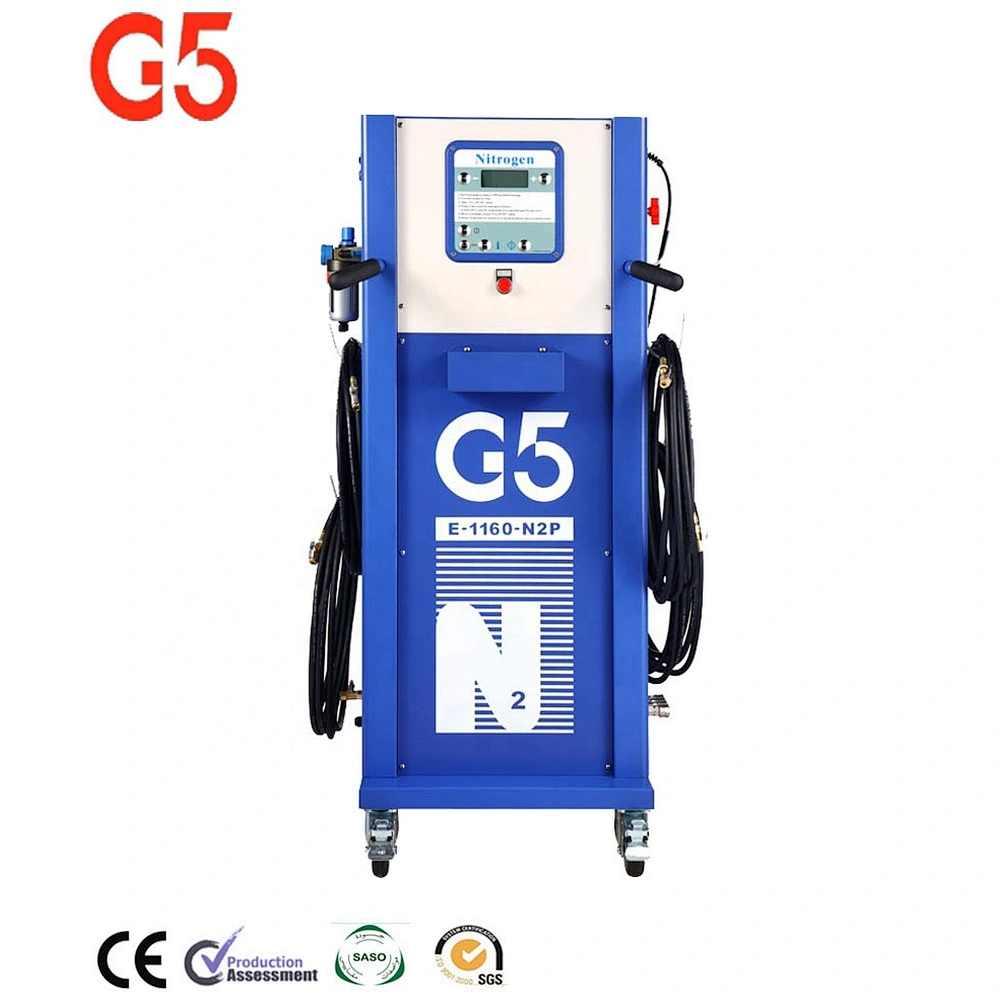

High purity Fully-auto Vacuum Car Tire Nitrogen Generator and Inflator System tyre nitrogen n2 generator tyre inflator machine
E-1160-N2P
1 set
FOB Zhuhai
Quantity
- Voltage:100-240V
- Max Pressure:101-150Psi
- Size:1310*720*620(mm)
- Place of Origin:Guangdong, China
- Brand Name:G5
- Model Number:E-1160-N2P
- Warranty:12 Months
- Function:Tire Pressure Monitor
- nitrogen purity:95-99%:LCD
- net weight:120kg:OPS
- Certification:ce
E-1160-N2P Nitrogen Generator and Conversion System for 4 Tyres Simultaneous Inflation

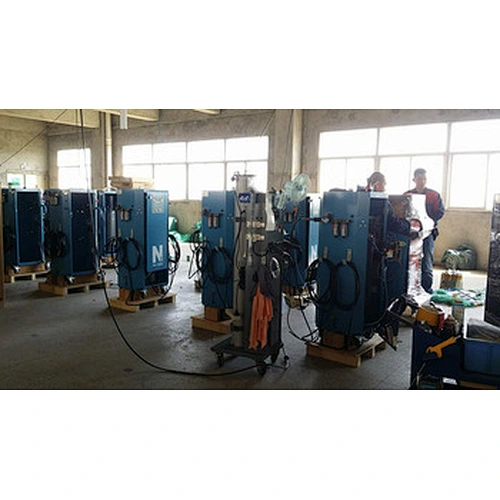

Packaging & Shipping
| Main Feature | |||
| 1. Suit for: Car, Light Truck | |||
| 2. Converts up to 4 tyres to Nitrogen simultaneously at the touch of a button | |||
| 3. Save 50% time than single tyre inflation | |||
| 4. Fully automated, fully programmable, micro-processor controlled conversion system | |||
| Technical Data | Specification | ||
| Application:Car, Light Truck | Pre-Filter/s: 2 | ||
| Built-in Automatic Tyre Inflator:Yes | Internal Nitrogen Storage Tank: 50L | ||
| Power Requirement: 100-240Vac 50/60HZ | External Nitrogen Storage Tank: No | ||
| Power Consumption: 35VA | Inflator Display: Large backlight LCD | ||
| Operating Temperature Range: -20°C/-4°F to 70°C/158°F | Nitrogen Outlet/s: 4 | ||
| Maximum Compressed Air Input: 123PSI/8.5bar/850kPa | 8M/26ft Hose with Closed Chuck: 4 | ||
| Compressed Air Input Flow: 500L/min (17.0cfm) | 10M/32.8ft Hose with Open Chuck: No | ||
| Nitrogen Purity: 95-99+% | 10M/32.8ft Hose with Fitting: No | ||
| Nitrogen Output: 93L/min (3.3cfm) | Nitrogen Purity Test Port: Yes | ||
| Maximum Nitrogen Pressure in Tank: 102PSI/7bar/700kPa | Adjustable Lower Purge Pressure Limit: Yes | ||
| Maximum Inflator Set Pressure: 90PSI/6.2bar/620kPa | Auto-Start Inflation: Yes | ||
| Minimum Inflator Set Pressure: 5PSI/0.3bar/35kPa | Automatic Zero Drift Adjustment: Yes | ||
| Over Pressure Setting (OPS): 0-29PSI/0-2.0bar/0-200kPa | Vandal Resistant Mechanical Switches: Yes | ||
| Nitrogen Purge and Fill Cycle (N2P): 0-9 | Net Weight: 120kg/264.6lbs | ||
| Inflator Accuracy: ±1PSI/0.07bar/7kPa | Gross Weight: 145kg/319.7lbs | ||
| Resolution: 1PSI/0.1bar/5kPa | Dimensions (Height*Width*Depth): 1310*720*620(mm) 51.6"*28.3"*24.4" | ||
| Units of Measurement: PSI/bar/kPa | Packing Size (Height*Width*Depth): 1450*730*670(mm) 57.1"*28.7"*26.4" | ||

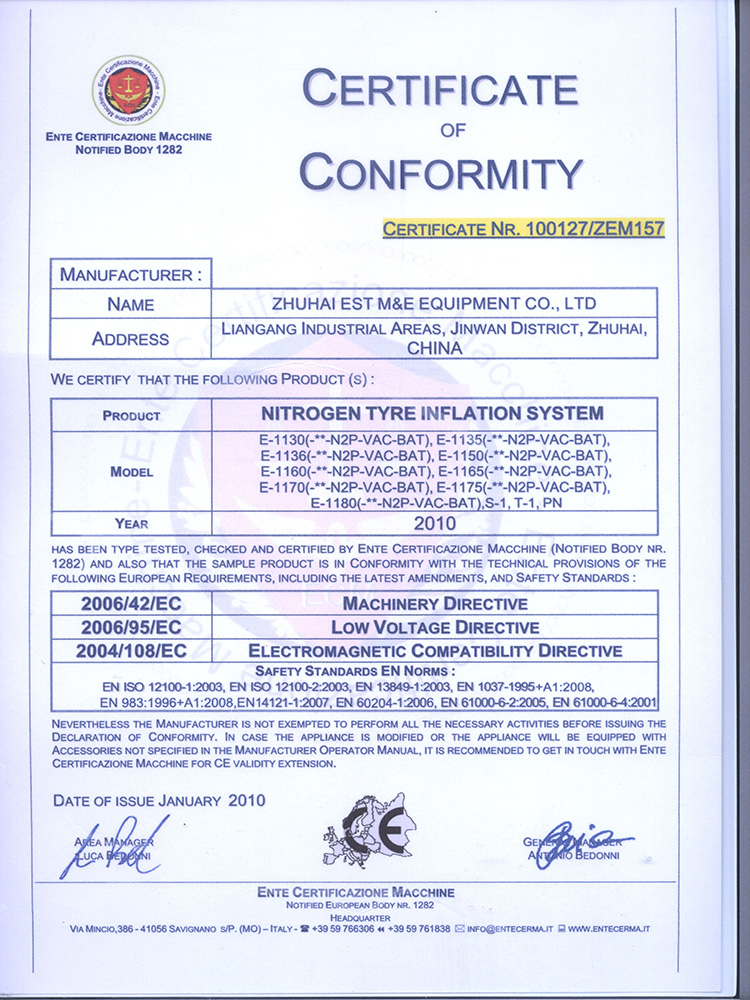

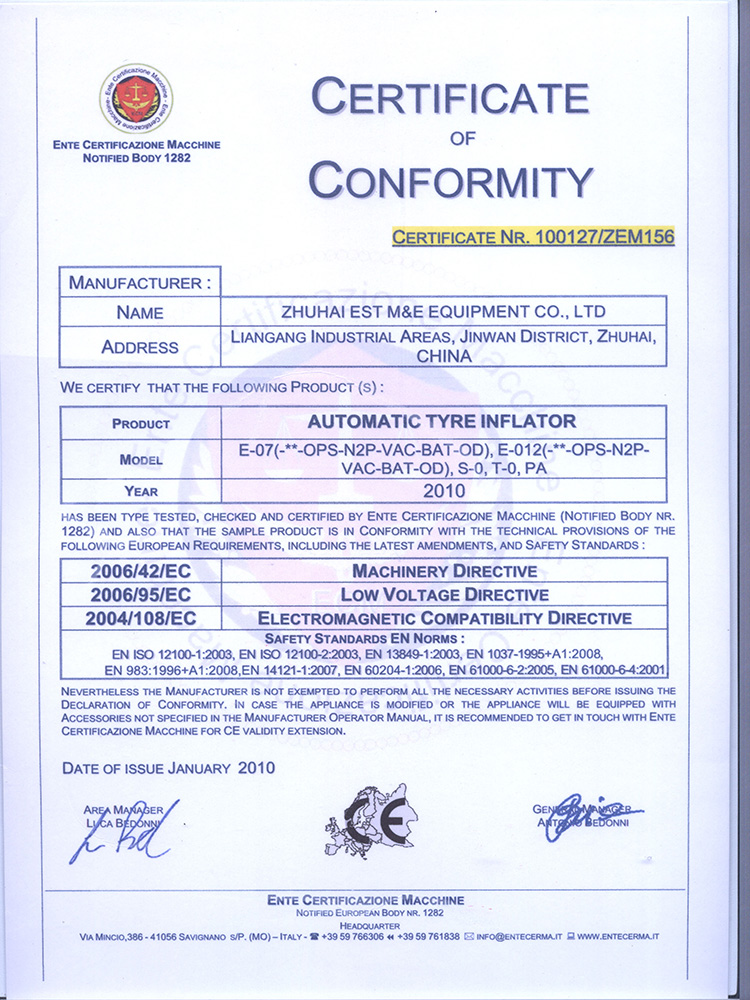

Certifications

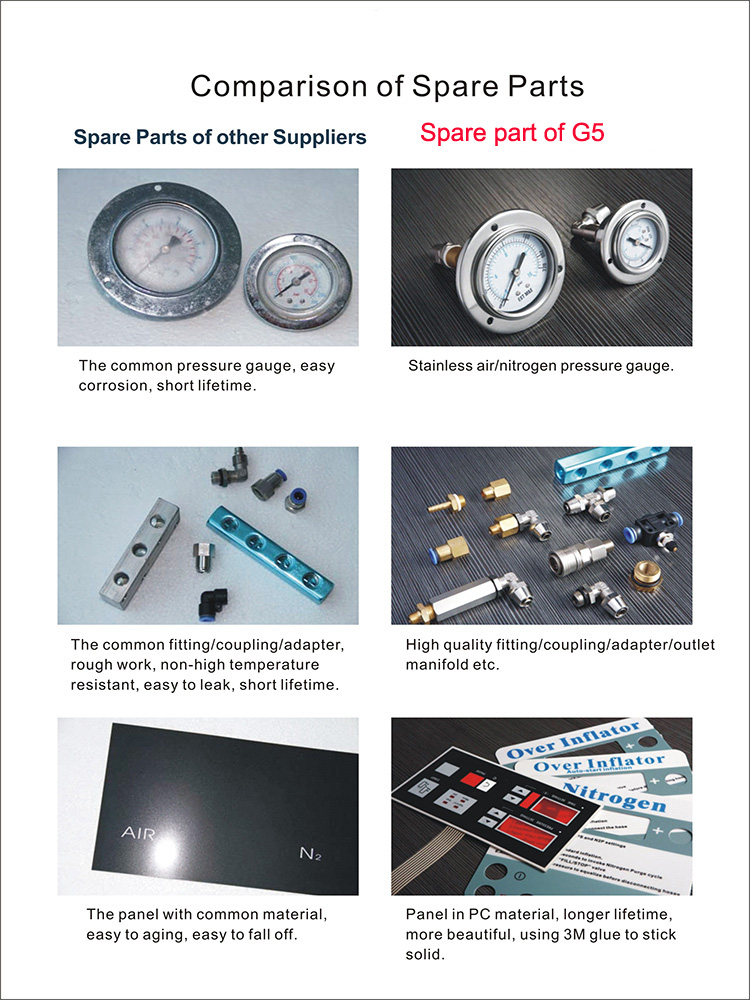

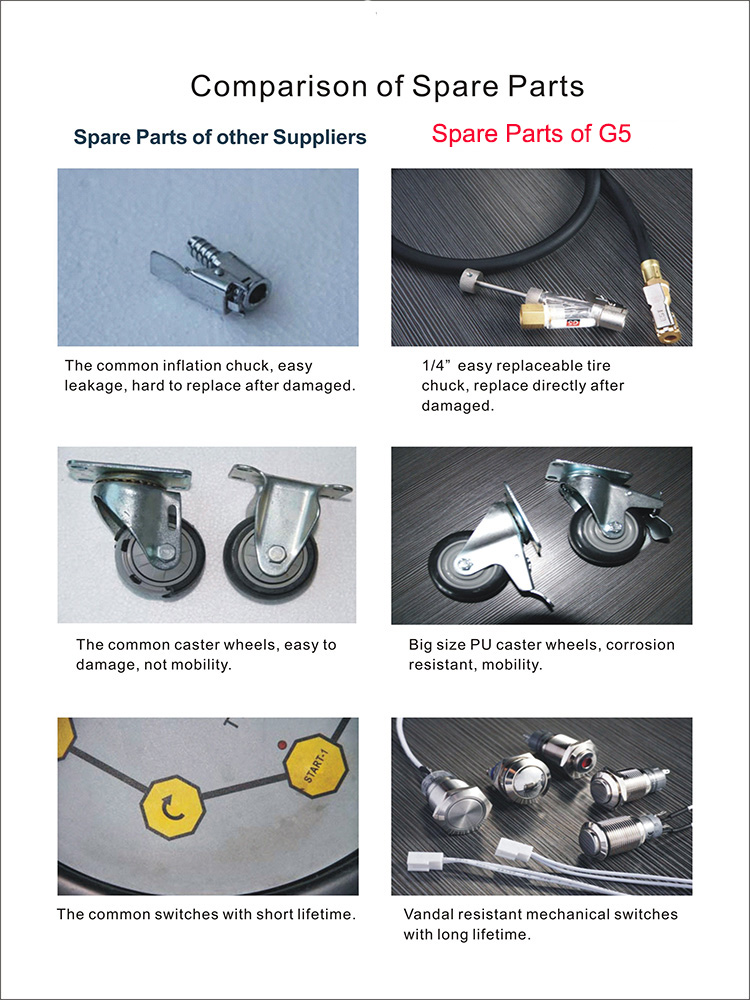

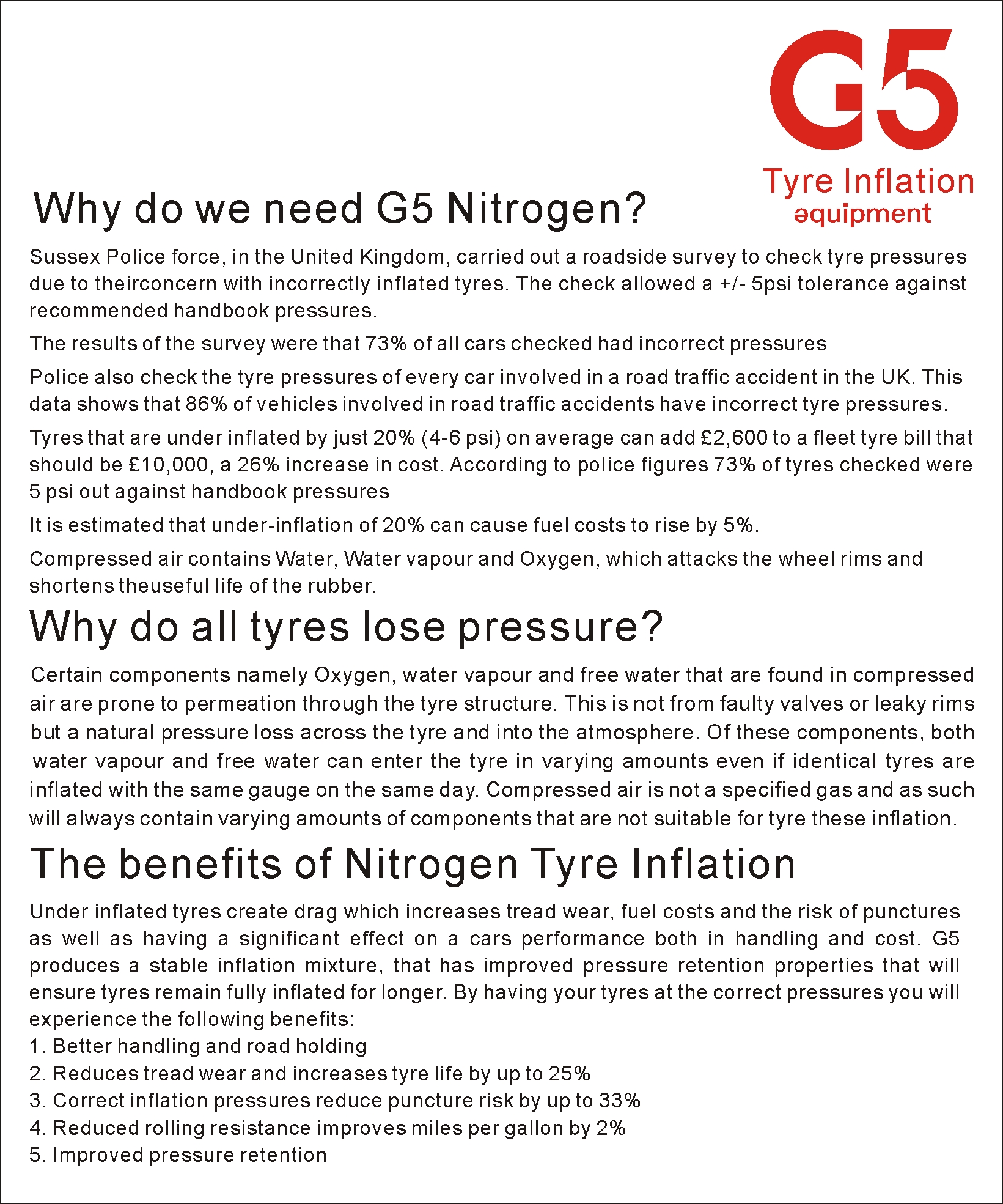

Advantages

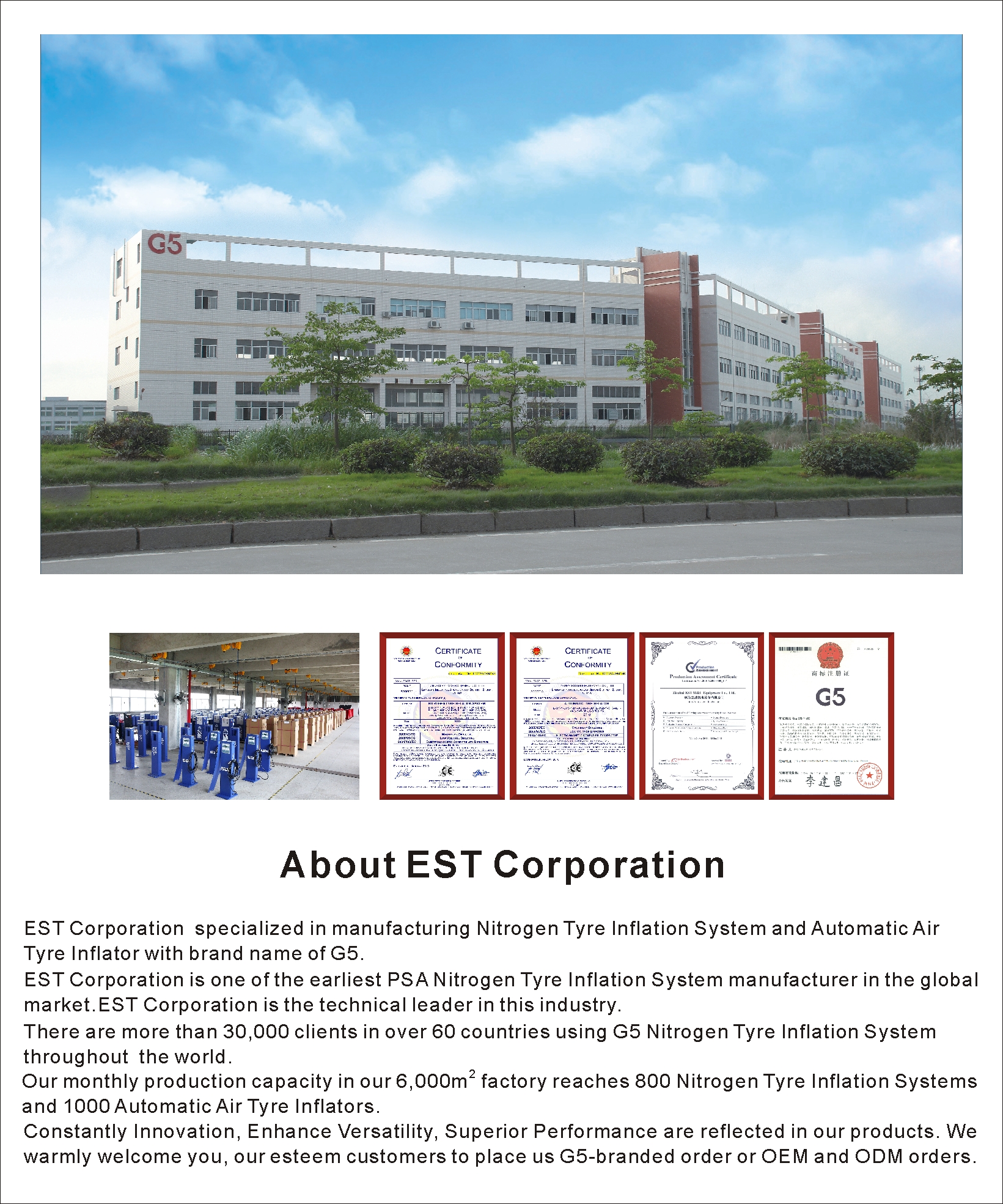

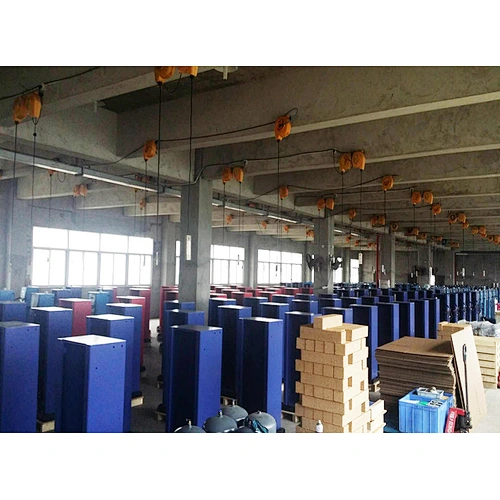

company information

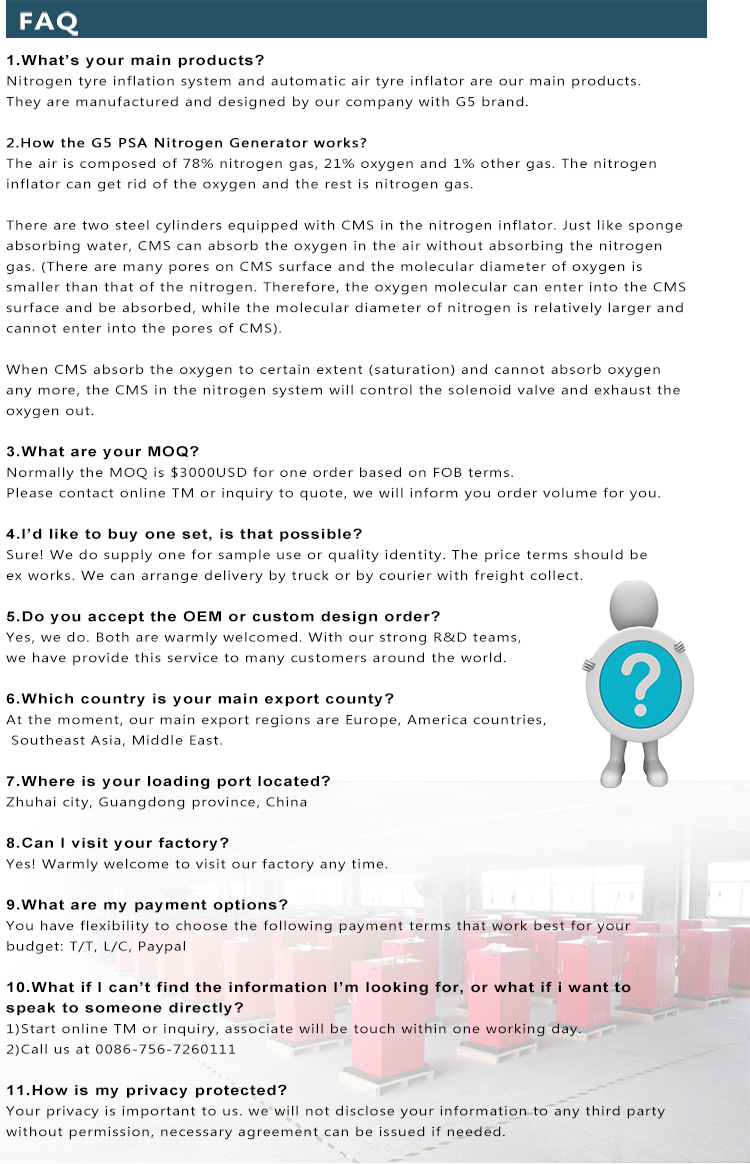

FAQ 1
