g5 tire Inflator nitrogen generator psa nitrogen generator machine nitrogen gas generator tire Inflators Other motorcycles pumps
E-1135-N2P
1 set
ZHUHAI
Quantity
- Voltage:100-240Vac 50/60HZ
- Max Pressure:50-100Psi
- Size:1255*720*435(MM)
- Place of Origin:Guangdong, China
- Brand Name:G5
- Model Number:E-1135-N2P
- Warranty:12 Months
- Function:Tire Pressure Monitor, Auto Nitrogen Filling
- Type:Electric Inflator
- Maximum Nitrogen Set Pressure:90PSI/6.2bar/620kPa
- Nitrogen Purity:97%+
- Nitrogen Outlet:1
- Material:Stainless Steel Cabinet
- Nitrogen Output:58L/min(2.0cfm)
- Usage:Motorcycle,Car
- Product name:G5 N2 High Purity Nitrogen Tyre Generator For Car Tire Inflator
- Certification:ce
E-1135-N2P Nitrogen Generator and Conversion System for Single Tyre Application
| Main Feature | |||
| 1. Suit for: Motorcycle, Car | |||
| 2. Converts the tyre to Nitrogen at the touch of a button | |||
| 3. Auto-Start Inflation | |||
| 4. Over pressure Setting (OPS) | |||
| 5. Single Tyre Application | |||
| Technical Data | Specification | ||
| Application: Motorcycle, Car | Pre-Filter/s: 2 | ||
| Built-in Automatic Tyre Inflator:Yes | Internal Nitrogen Storage Tank: 50L | ||
| Power Requirement: 100-240Vac 50/60HZ | External Nitrogen Storage Tank: No | ||
| Power Consumption: 30VA | Inflator Display: Large backlight LCD | ||
| Operating Temperature Range: -20°C/-4°F to 70°C/158°F | Nitrogen Outlet/s: 1 | ||

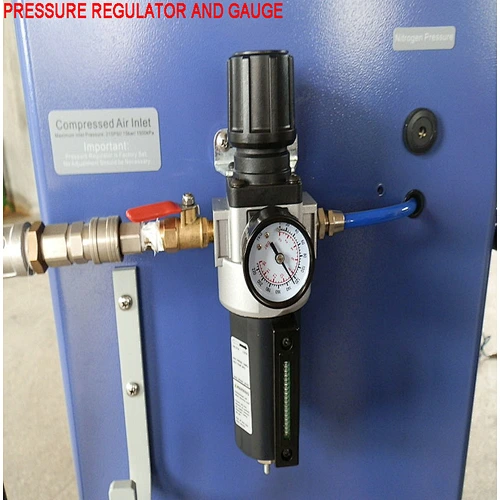

| Maximum Compressed Air Input: 123PSI/8.5bar/850kPa | 8M/26ft Hose with Closed Chuck: No | ||
| Compressed Air Input Flow: 250L/min (8.0cfm) | 10M/32.8ft Hose with Open Chuck: 1 | ||
| Nitrogen Purity: 95-99+% | 10M/32.8ft Hose with Fitting: No | ||
| Nitrogen Output: 58L/min (2.0cfm) | Nitrogen Purity Test Port: Yes | ||
| Maximum Nitrogen Pressure in Tank: 102PSI/7bar/700kPa | Adjustable Lower Purge Pressure Limit: Yes | ||
| Maximum Inflator Set Pressure: 90PSI/6.2bar/620kPa | Auto-Start Inflation: Yes | ||
| Minimum Inflator Set Pressure: 5PSI/0.3bar/35kPa | Automatic Zero Drift Adjustment: Yes | ||
| Over Pressure Setting (OPS): 0-29PSI/0-2.0bar/0-200kPa | Vandal Resistant Mechanical Switches: Yes | ||
| Nitrogen Purge and Fill Cycle (N2P): 0-9 | Net Weight: 89kg/196.2lbs | ||
| Inflator Accuracy: ±1PSI/0.07bar/7kPa | Gross Weight: 106kg/233.7lbs | ||
| Resolution: 1PSI/0.1bar/5kPa | Dimensions (Height*Width*Depth): 1255*720*435(mm) 49.4"*28.3"*17.1" | ||
| Units of Measurement: PSI/bar/kPa | Packing Size (Height*Width*Depth): 1380*730*510(mm) 54.3"*28.7"*20.1" | ||

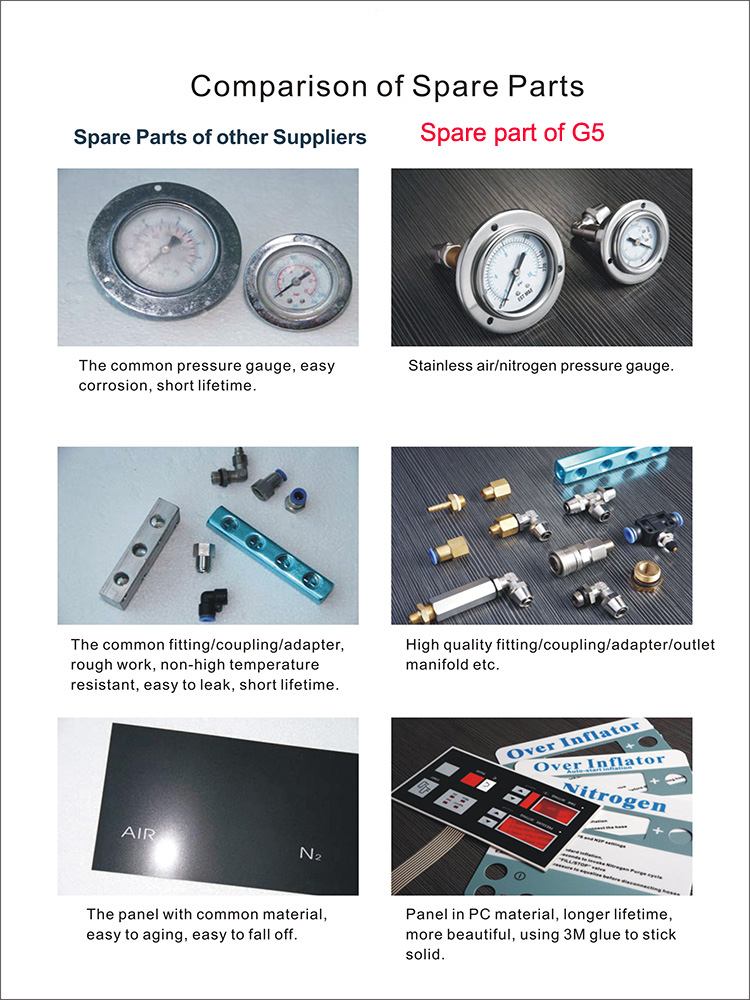

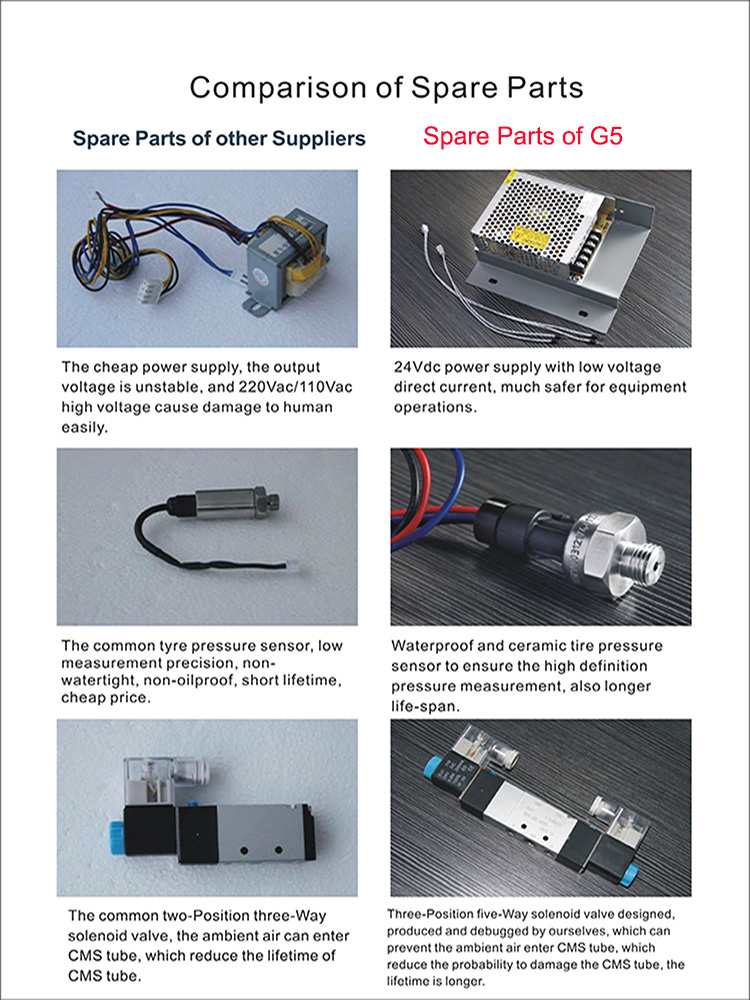

Advantages
Packaging & Shipping

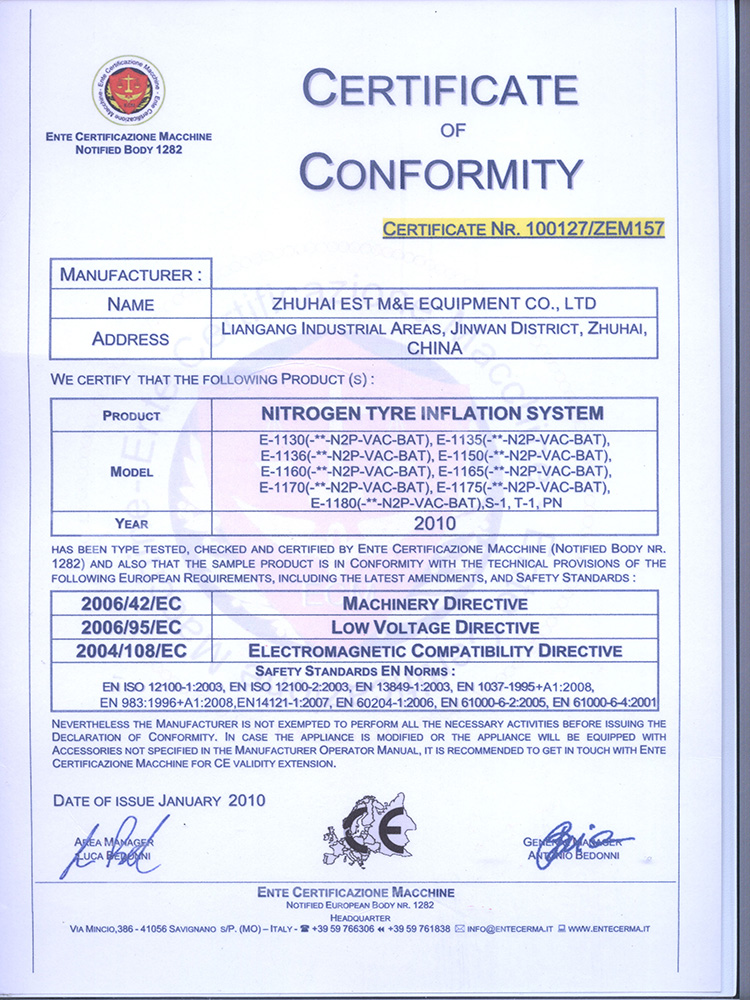

Certifications
